| Product Name | DC12V Waterproof LED Channel letter module M23AA17Q |
| Item NO. | LED-MZ-M23AA17Q |
| Weight | 0.01 kg = 0.0220 lb = 0.3527 oz |
| Category | LED > LED Module > Led Channel Letter Module |
| Creation Time | 2020-09-20 |

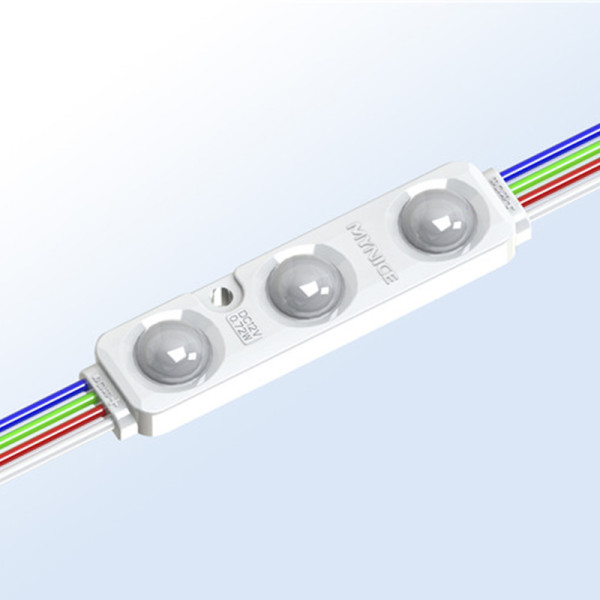

DC12V Waterproof LED Channel letter module M23AA17Q
Technical data
Input Voltage: DC 12V
◆ Power: 0.72W / pcs
◆ Lumen: 29 lm / pcs
◆ Lifetime: > 50000 hours
◆ Color: R/G/B
Product advantages
◆ Good optice(bat-wing lens)design to acheve good
optical performance;

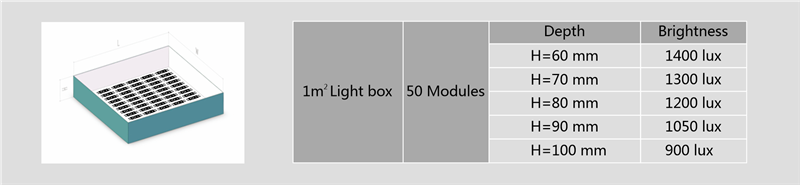

◆ Best for 50mm to 250mm depth (2inch to 10ince)

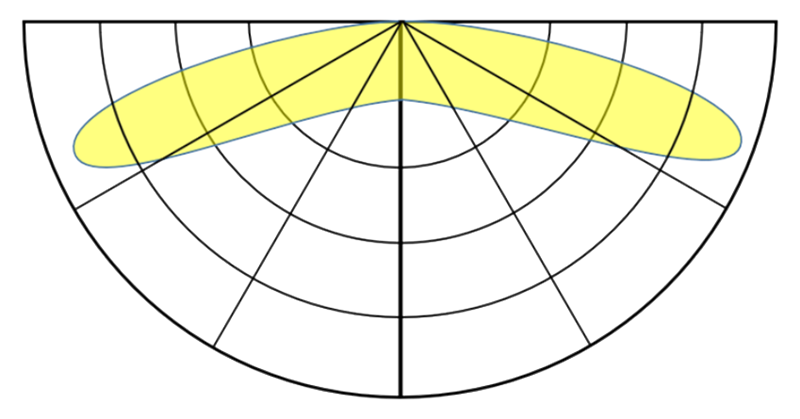

Optical data distribution

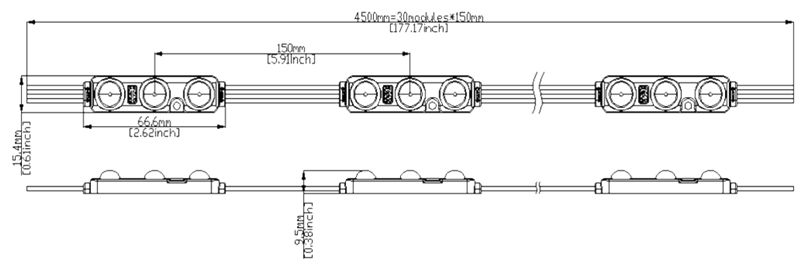

Dimensional drawing
Application notes
